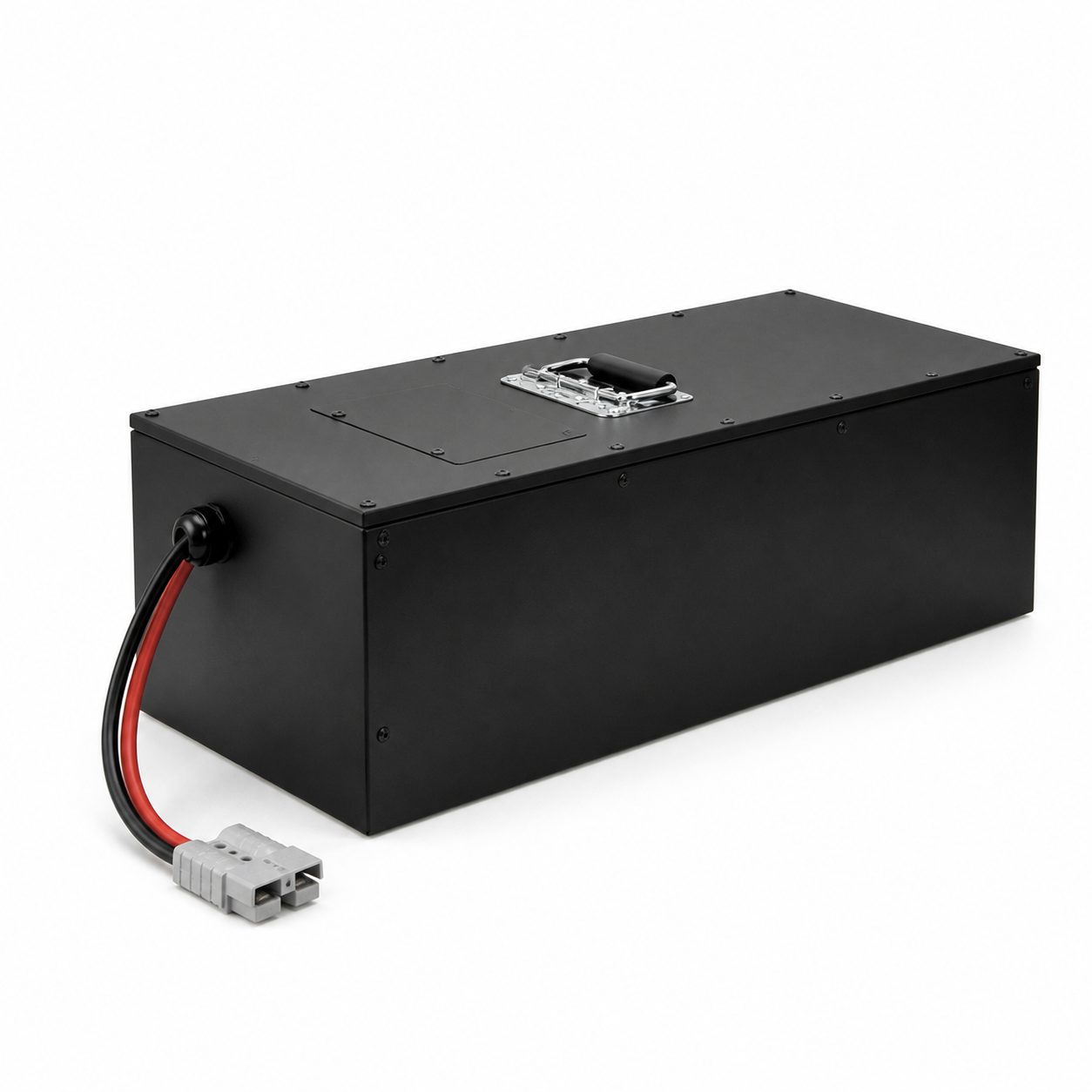

Representative product form. Final enclosure, connector and labeling follow the approved specification.
Custom & Industrial Packs
24V200Ah Lithium iron Phosphate Battery
Customizable battery configuration for OEM and industrial equipment. Specifications shown are a reference baseline and can be reviewed for OEM requirements.
Discuss This RequirementReference Specification
Starting point for engineering review
Final specifications, cell selection, BMS limits and compliance documents depend on the confirmed application and order requirements.
Item
General Parameter / Remark
Rated Capacity
200Ah / Standard discharge 0.5C after standard charge 0.5C
Minimum Capacity
180Ah
Nominal Voltage
25.6V /
Life Expectation
Higher than 80% .of the Initial Capacity of the battery / 1）Charge:CC@0.5C to 29.2V, then CV till current to 0.05C 2）Rest: 30min. 3）Discharge: 0.5C to 20V Temperature:20±5℃ Carry out 2000cycles
Discharge cut-off voltage
20~22V /
Charge cut-off voltage
28.8~29.2V /
Cell and assembly method
IFP54173200-3.2V206Ah / 8S1P
Housing material
ABS /
Standard charge
0.5C constant current (CC) charge to 29.2Vthen constant voltage (CV) 29.2V charge till charge current decline to ≤0.05C / Charge time :Approx 7h
Standard discharge
Constant current 0.5C，Cut-off voltage 20V /
Maximum Charge Current
200A@25℃ /
Maximum Continuous Discharge Current
200A@25℃ /
Operation Temperature Range
Charge: 0～60℃ / 60±25%R.H. 23 ± 5°C
Build this platform around your equipment.
Start with a reference model or send a completely new specification.
