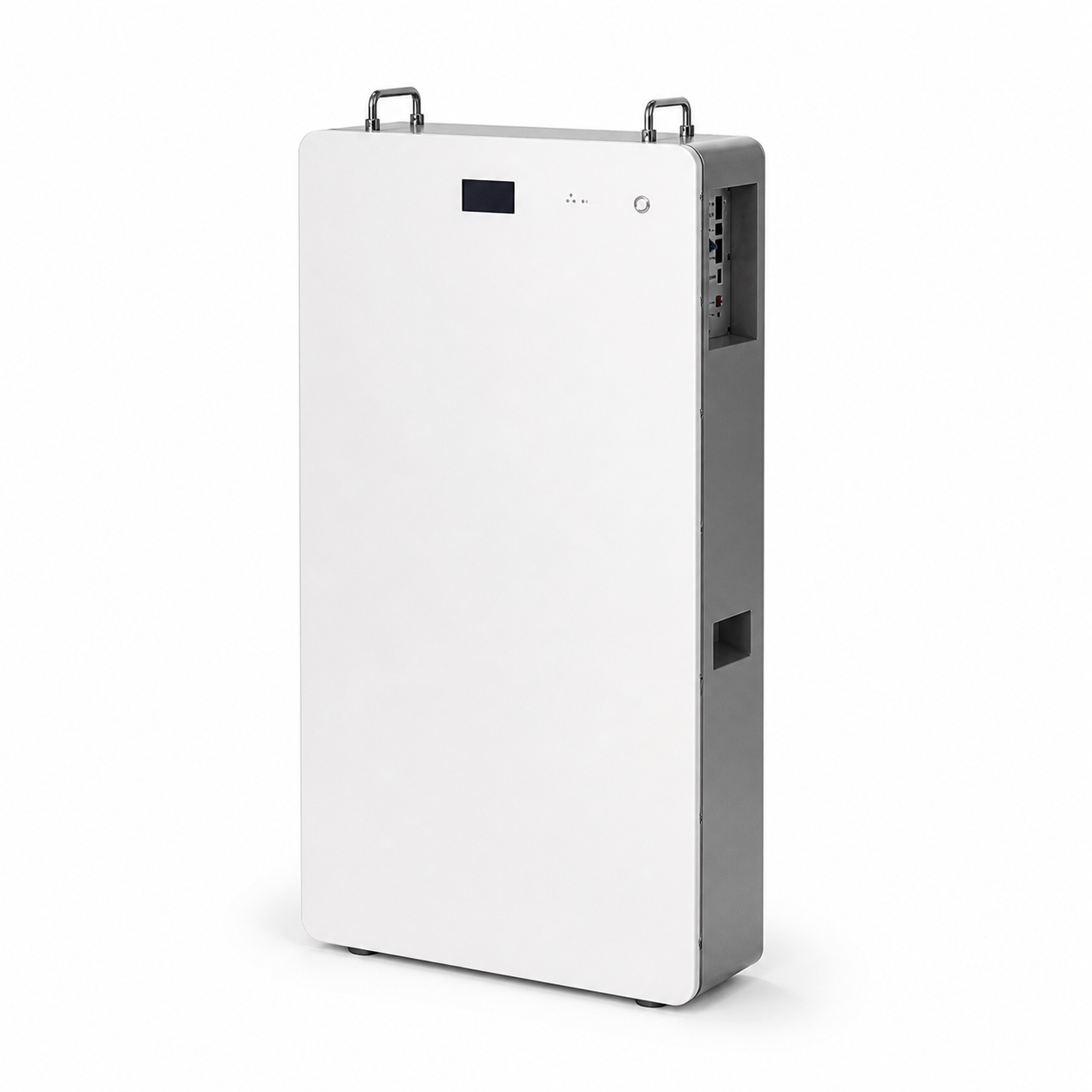

Representative product form. Final enclosure, connector and labeling follow the approved specification.
Energy Storage
51.2V 130Ah 6.66kWh Wall Mounted LiFePO4 Home Solar Energy Storage Battery
LiFePO4 energy storage configuration for residential, commercial or industrial systems. Specifications shown are a reference baseline and can be reviewed for OEM requirements.
Discuss This RequirementReference Specification
Starting point for engineering review
Final specifications, cell selection, BMS limits and compliance documents depend on the confirmed application and order requirements.
Item
SP-ESS-6.66kWh-B1
Cell Chemistry
LiFePO4
Battery Energy
6.66kWh
Battery Voltage
51.2V
Nominal Capacity
130Ah
Nominal Energy
6656
Operating Voltage Range
43.2-57.6V
Maximum Output Power
7.68kW
Maximum Charging Current
150A
Maximum Continuous Discharge Current
150A
Cycle Life
>6000 time, 25°C/77°F, 80%DOD
Dimensions (LxWxH)
1120*510*105mm
Weight
74Kg
Designed Life-span
10 years
Build this platform around your equipment.
Start with a reference model or send a completely new specification.
