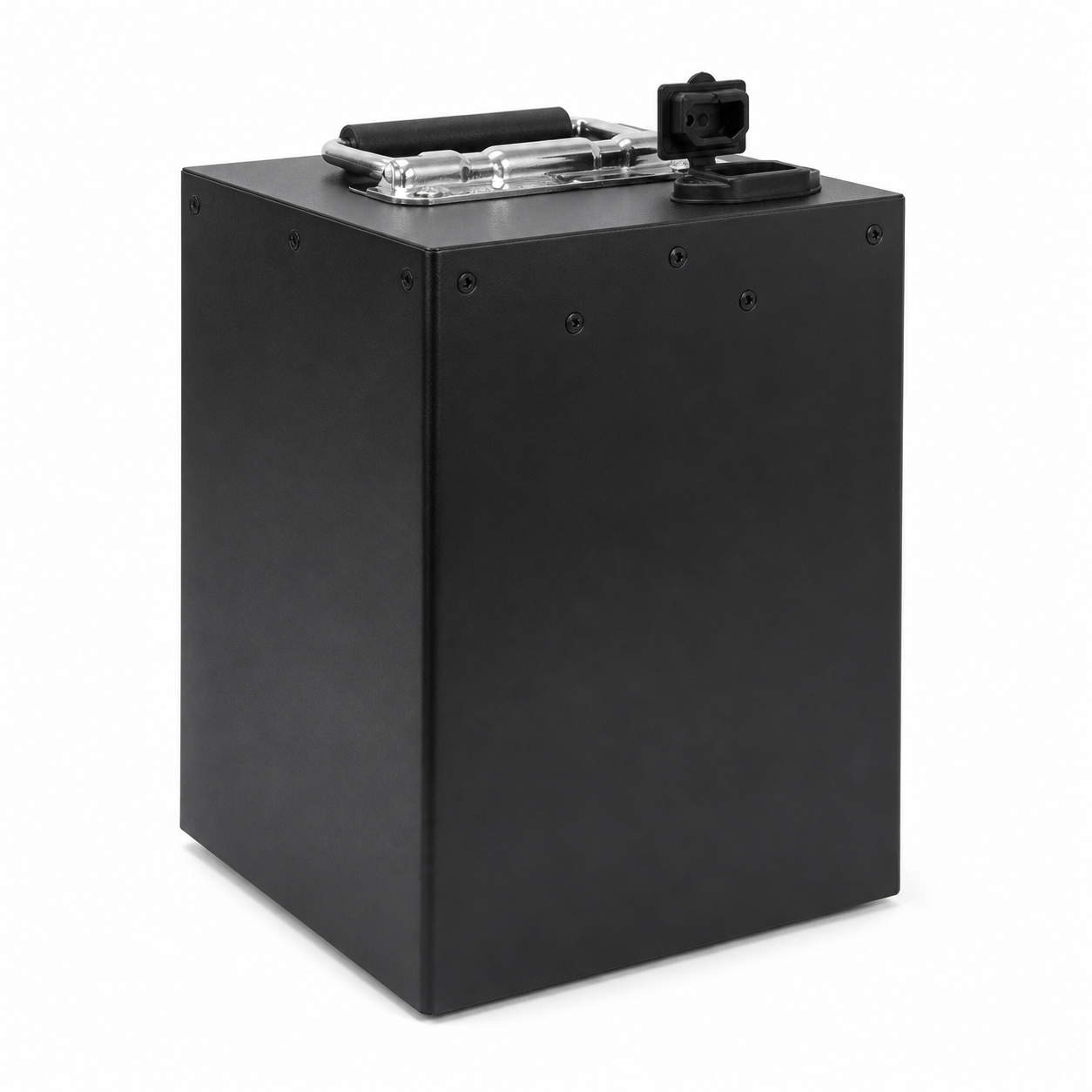

Representative product form. Final enclosure, connector and labeling follow the approved specification.
E-Mobility
Premium76V 45Ah Batteries for E-Motorcycle
Rechargeable battery configuration for electric mobility applications. Specifications shown are a reference baseline and can be reviewed for OEM requirements.
Discuss This RequirementReference Specification
Starting point for engineering review
Final specifications, cell selection, BMS limits and compliance documents depend on the confirmed application and order requirements.
Model
SPF72V45Ah
Nominal Voltage
76.8V
Nominal Capacity
45Ah
Energy
3456Wh
Single Cell
24S LiFePO4
Internal Resistance
0.1mΩ
Matched Motor Power
2500W
Continuous Discharge Current
60A
Peak Discharge Current
240A (≤500mS)
Discharge Cut-off Voltage
60V
Cycle Life (0.2C)
>2000 Cycles
Standard Charging Current
10A (Adjustable range: 3~15A)
Max Charging Cut-off Voltage
87.6V
Charging Temperature Range
-5℃ ~ 55℃
Build this platform around your equipment.
Start with a reference model or send a completely new specification.
